Industrial Grade Portable Pneumatic Airless Sprayer for High Pressure Paint Application

Product Details

Brand Name: Zhongren

Certification: CE Certification

Model Number: ZRSM-PA2546

Payment & Shipping Terms

Minimum Order Quantity: 2 pieces

Price: CN¥7,976.76/pieces 2-19 pieces

Packaging Details: Wooden case or carton

Delivery Time: 7-15 work days

Payment Terms: L/C,T/T

Supply Ability: 1-7set , 15 work days

Get Best Price
Chat Now
Product Details
Highlight:

High Pressure Pneumatic Airless Sprayer

,

Industrial Grade Airless Paint Sprayer Machine

,

Portable High Pressure Paint Sprayer

Grade:
Industrial
Power Source:
Pneumatic
Customized Support:
OEM, Obm, Odm
Place Of Origin:
Shandong, China
Brand Name:
Zhongren
Type:
Airless Spray Gun
Application:
Paint Spray Gun
Cup Volume:
Other
Max Pressure:
Other
Nozzle Size:
Other
Product Name:
Airless Paint Sprayer Machine
Usage:
Nuclear And Conventional Power Facilities/Pipeline/Metals And Mining
Feature:
High Spraying Effect
MOQ:
1pcs
Pressure Ratio:
36:1-46:1
Cylinder Bore:
125-280mm
Packing:
Wooden Box
Use Compressed Air:
0.3-0.7
No-load Flow(L/min):
25
Grade:
Industrial
Power Source:
Pneumatic
Customized Support:
OEM, Obm, Odm
Place Of Origin:
Shandong, China
Brand Name:
Zhongren
Type:
Airless Spray Gun
Application:
Paint Spray Gun
Cup Volume:
Other
Max Pressure:
Other
Nozzle Size:
Other
Product Name:
Airless Paint Sprayer Machine
Usage:
Nuclear And Conventional Power Facilities/Pipeline/Metals And Mining
Feature:
High Spraying Effect
MOQ:
1pcs
Pressure Ratio:
36:1-46:1
Cylinder Bore:
125-280mm
Packing:
Wooden Box
Use Compressed Air:
0.3-0.7
No-load Flow(L/min):
25
Product Description
Professional 63:1 Pneumatic Airless Sprayer High Pressure Air Driven Painting Equipment for High Viscosity Coatings
Product Overview

Wholesale Best Price Portable Airless Sprayer for Efficient Coating and Quick Paint Application in Construction Sites

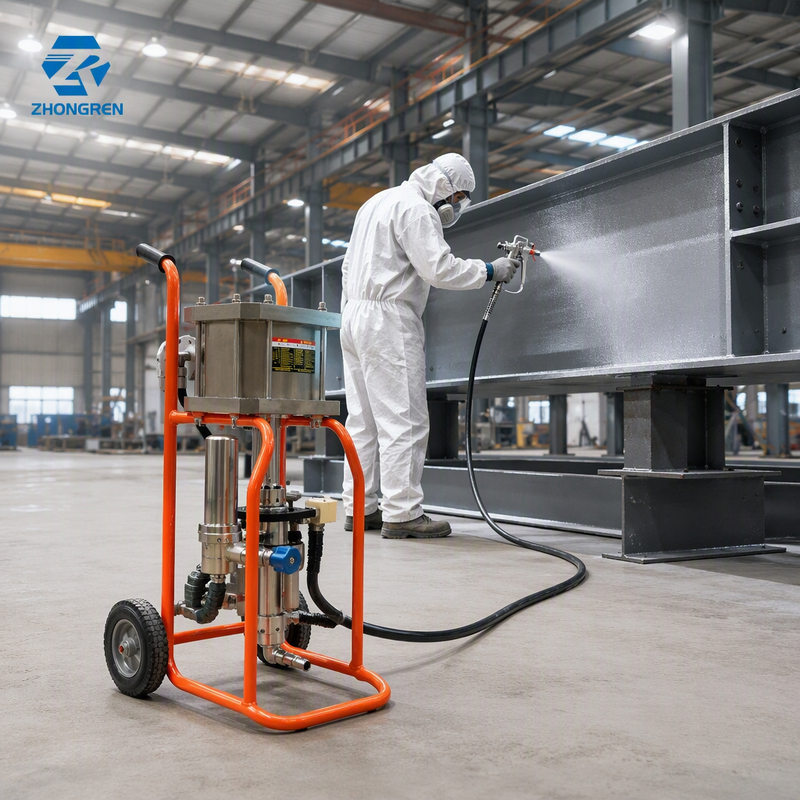

Professional pneumatic airless sprayer in industrial setting

The single component pneumatic airless sprayer offers the ultimate combination of power and portability, giving you the ability to spray tough materials in the most challenging situations and approved for hazardous locations. These High Quality, High Volume and High Pressure pneumatic airless sprayers are ideal for protective coating projects like bridges, ship tanks, or even just touch-up projects.

The system provides applicator output values, pressure ratios and pumping capacities to outperform and outlast all other sprayers in its class. They easily handle the toughest protective coatings, corrosion control, waterproofing and fireproofing materials. These high-pressure, high-performance pumps include a well proven, reliable air exchange valve that provides quick changeover reducing pulsation.

Pneumatic Spraying Applications

Zhongren produces spray painting groups and units for industrial finishing and protective coatings. The high-pressure pneumatic sprayers, available in different models and configurations, are suitable for using a wide range of medium-solid paint products and protective materials at high thickness.

  • Spray paint products at ambient temperature, diluted if necessary to obtain the right viscosity point
  • Handle heated materials to decrease viscosity, atomizing paint at lower pressure to reduce thinner usage
  • Recirculate heated product in high pressure hoses to prevent cooling during spraying pauses
  • Reduce working pressure by 50% when using heated products (pressure can reach up to 500 bar)

The spray packages are equipped with functional and professional accessories that guarantee maximum efficiency and operation: airless guns and spray nozzles available in various sizes, and high pressure hoses in different lengths for quick product passage.

Sprayer technical specifications and components
Technical Specifications
Model Weight Cylinder Bore (MM) Use Compressed Air Pressure Ratio No-load Flow (L/min)
ZRSM-PA1234 36KG 125 0.3-0.6 34:1 5.6
ZRSM-PA9C 80kg 240 0.3-0.7 32:1 51
ZRSM-PA2546 65KG 250 0.3-0.7 46:1 20.8
ZRSM-PA2832 88KG 280 0.3-0.6 32:1 38
ZRSM-PA2840 88KG 250 0.3-0.6 40:1 30
ZRSM-PAQ2 88KG 280 0.3-0.6 48:1 40
ZRSM-PAQ4 88KG 250 0.3-0.6 48:1 46
ZRSM-PA6918 88KG 250 0.3-0.6 48:1 36

Air compressor configuration: 1m³ (Customers are required to buy their own)

Performance Features
High-pressure pump components and construction Sprayer internal mechanism and packing set

High-Volume, High-Pressure Pumps: Engineered for exceptional performance in waterproofing, fireproofing, and other protective coatings.

Exceptional Pump Longevity and Efficiency: Specifically crafted for heavy-duty spraying applications, our AtlasPro Pump Modules are built to withstand the most challenging conditions. While incorporating the time-tested V-Packing set sealing design, these modules ensure consistent and reliable performance to get every spraying job done effectively.

Additional sprayer technical details Sprayer in operational use
